Halsey Display

Cable Display Systems

Part Number

Description

Cables Sizes and Weights

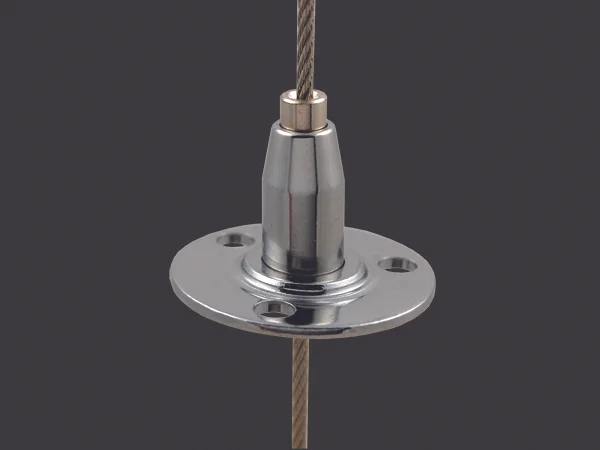

CG12/15-BRP


Bullet with Round Plate

1.2MM(3/64") 20LBS  1.5MM(1/16") 40LBS

CG12/15-BRP

CG12/15-BRP

Adjustable cable gripper for ceilings and wood shelves. Use three #6 Pan Head screws to secure to the ceiling or shelf.


CG12/18-HK

Art Hanging Hook

1.2MM(3/64") 20LBS  1.8MM(1/16") 40LBS

CG12/18-HK

CG12/18-HK

Adjustable cable gripper for hanging art and many other types of displays. The adjustable hook slides freely up and down the cable and attaches to the picture wire or D-rings on the back of picture frames.

More Details


CG12/18-HKC

Art Hanging Hook with Clasp

1.2MM(3/64") 20LBS  1.8MM(1/16") 40LBS

CG12/18-HKC

CG12/18-HKC

Adjustable cable gripper for hanging art and many other types of displays. The adjustable hook slides freely up and down the cable and attaches to the picture wire or D-rings on the back of picture frames. The HKC hook adds a security clasp to the basic hook.

More Details


CG15/25-BF

Bullet with Flange

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BF

CG15/25-BF

Adjustable cable gripper to support banner rods and clothing hang-rods. Drill 15/32" diameter hole in rod to support the CG15/25-BF.


CG15/25-BHB

Bullet with Hidden Base

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BHB

CG15/25-BHB

Ceiling attachment for light weight displays. Uses a single #8 Flat Head screw. Excellent for suspending graphics in retail stores or lightweight artwork. For stronger connection to ceiling see the CG15/25-BRP.


CG15/25-BHP

Bullet with Hinged Plate

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BHP

CG15/25-BHP

Highly versatile adjustable cable gripper.  Can be used on the ceiling and the wall. Could also be attached to sign-age and the back of artwork.

More Details

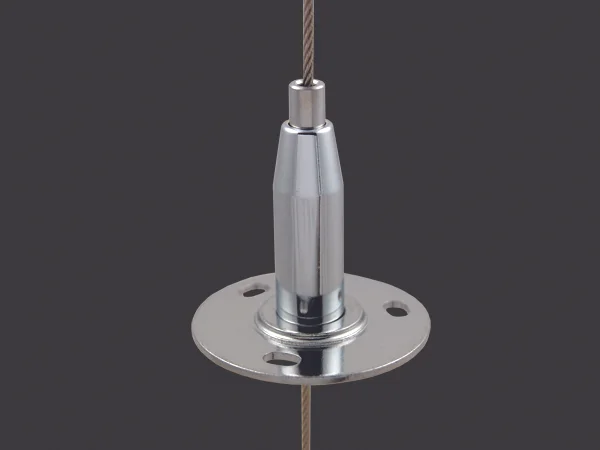

CG15/25-BRP

Bullet with Round Plate

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BRP

CG15/25-BRP

Adjustable cable gripper for ceilings and wood shelves. Use three #8 Pan Head screws to secure to the ceiling or shelf.


CG15/25-BT

Bullet Tensioner

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BT

CG15/25-BT

Floor tensioner to minimize movement of the display. Used commonly in graphics, shelving and clothing rod display systems. Mounts to the floor with a single #8 flat head screw or Tapcon type fastener.

CG15/25-CL14

Clevis Sign Hanger 1/4" Slot

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-CL14

CG15/25-CL14

Adjustable cable gripper for sign-age up to 1/4" thick material. Clevis type hanger slips over the top of the graphic and secures with a screw through a required hole.

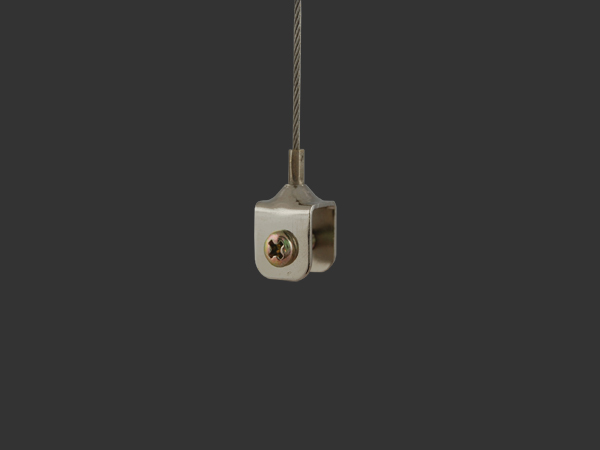

CL38

Non Adjustable Clevis Sign Hanger

1.5MM(1/16") 20LBS

CL38

CL38

Non adjustable holder for sign-age up to 3/8" thick material. Clevis type hanger slips over the top of the graphic and secures with a screw through a required hole. Use with adjustable ceiling attachment to properly level the display.


CG15/25-HK

Large Art Hanging Hook

1.5MM(1/16") 40LBS 2.5MM(3/32") 60LBS

CG15/25-HK

CG15/25-HK

Need more of a hook, this is it! Larger opening makes it easier to attach to thicker material. Can even be used to display handbags and backpacks in a retail setting.


CG15/25-RSPC

Rotating Shelf and Panel Clip

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-RSPC

CG15/25-RSPC

Adjustable glass shelf support. Clip rotates to allow use on vertical sign-age and graphics. Can accommodate up to 3/8" thick material.
