Halsey Display

Cable Display Systems

Part Number

Description

Cable Sizes and Weights



CG15/25-RSPC

Rotating Shelf and Panel clip

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-RSPC

CG15/25-RSPC

Adjustable glass shelf support. Clip rotates to allow use on vertical sign-age and graphics. Can accommodate up to 3/8" thick material.


CR- Specify Length

Adjustable Height Clothing Rod

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CR-

CR-

Clothing rod 1" diameter with adjustable cable grippers CG15/25-BF. Change the height of the rod with a push of a button. Available in lengths of up to 60". Specify desired lengths in inches when ordering.


CG15/25-BRP

Bullet with Round Plate

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BRP

CG15/25-BRP

Adjustable cable gripper for ceilings and wood shelves. Use three #8 Pan Head screws to secure to the ceiling or shelf.

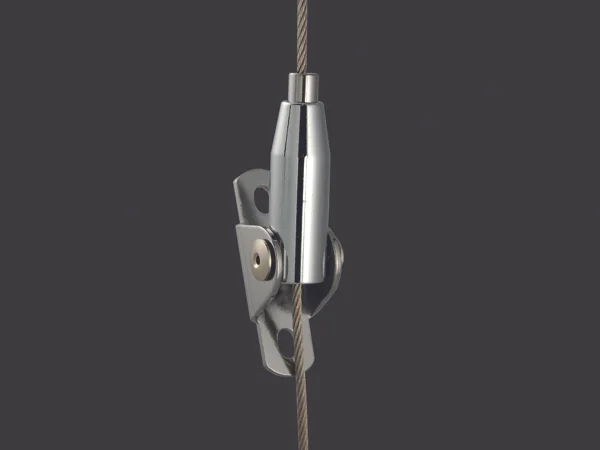

CG15/25-BHP

Bullet with Hinged Plate

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BHP

CG15/25-BHP

Highly versatile adjustable cable gripper.  Can be used on the ceiling and the wall. Could also be attached to sign-age and the back of artwork.

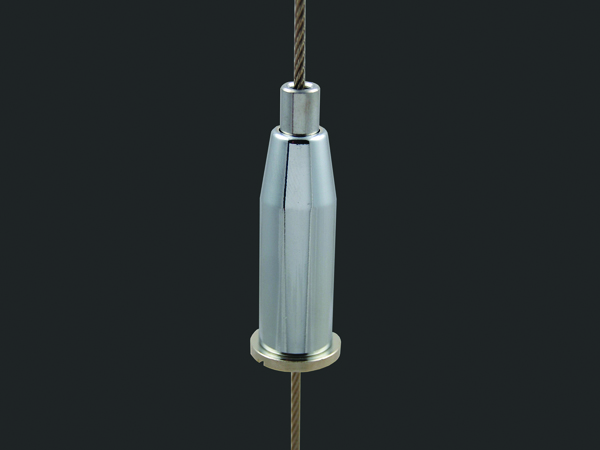

CG15/25-BF

Bullet with Flange

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BF

CG15/25-BF

Adjustable cable gripper to support banner rods and clothing hang-rods. Drill 15/32" diameter hole in rod to support the CG15/25-BF.


CG15/25-BT

Bullet Floor Tensioner

1.5MM(1/16") 40LBS 2.5MM(3/32") 80LBS

CG15/25-BT

CG15/25-BT

Floor tensioner to minimize movement of the display. Used commonly in graphics, shelving and clothing rod display systems. Mounts to the floor with a single #8 flat head screw or Tapcon type fastener.
