Halsey Display

Cable Display Systems

T1 Track

 T1-6ftin white and silver

T1-6ftin white and silver

The T1 track is a wall mounted track with hidden fasteners. Use to display artwork, graphics and sign-age. Track lengths are 71" and can be joined together for long runs or cut on site for short sections. Supplied in a bright white finish. The track can support up to 70LBS per section. At only 1" high and 3/8" thick the T1 offers a clean low profile look.

White #T1W-6ft

Silver #T1S-6ft


T1 Mounting Bushings

 T1 Mounting Bushings

T1 Mounting Bushings

Mounting bushings are included with each T1 track. Attach to wall with #6 screw and T1 track snaps over the top of the bushings. Use the brass mounting bar to bridge two tracks.


T1 End Caps

 T1W-EC

T1W-EC

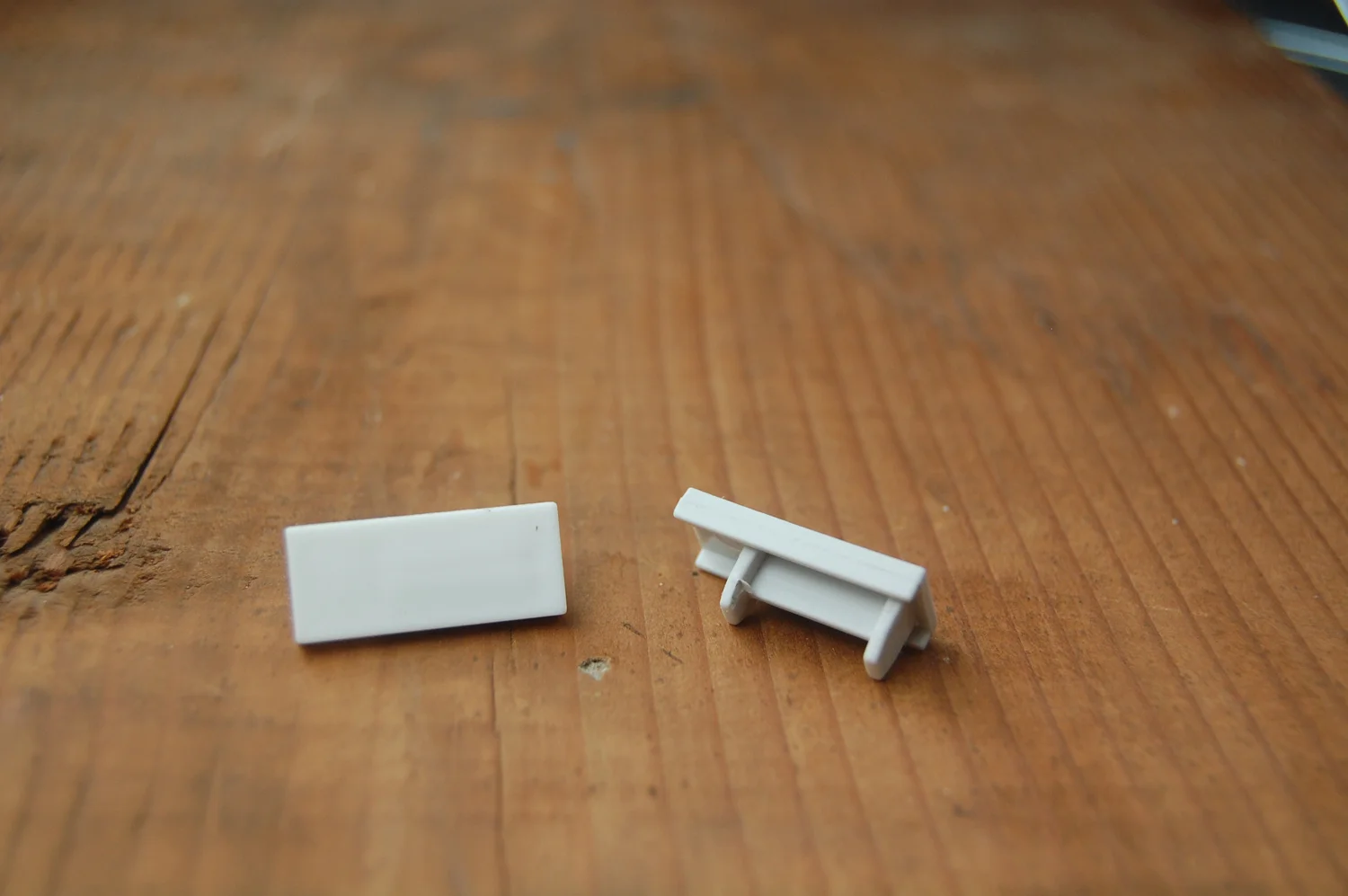

End caps and corner caps clean up the exposed ends of the T1 track. End caps are available in white and silver.

End caps are sold pairs.

White #T1W-EC

Silver #T1S-EC


T1F1-18-Specify Length in Feet

1.6MM (1/16") 25LBS

 T1F1-18

T1F1-18

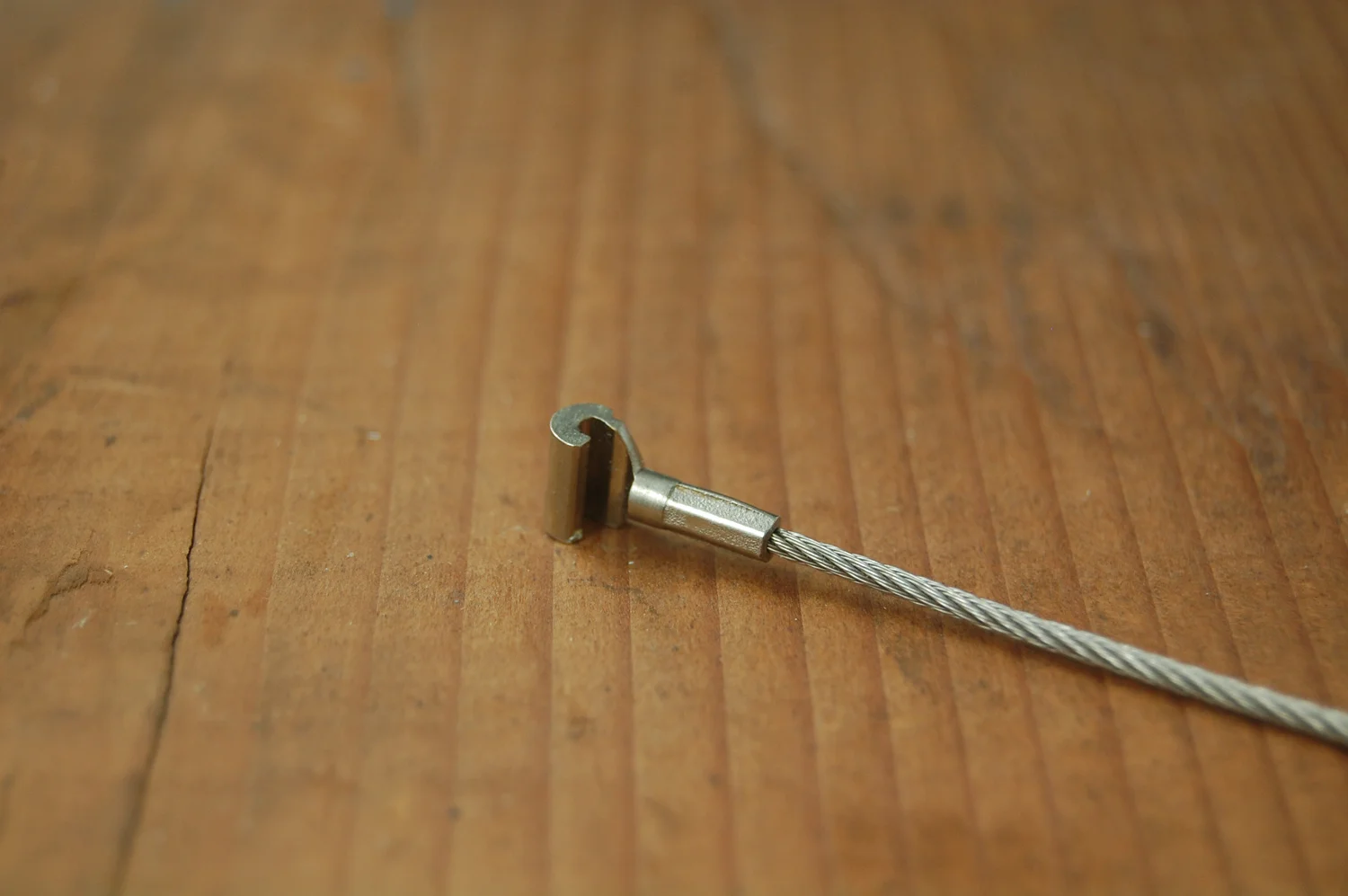

The T1F1 cable fittings will attach to the track at any point to allow adding a piece between two existing pieces. Maximum weight per cable is 25LBS. Using two cables allows a maximum picture weight of 50LBS.


T1F2-15-Specify Length in Feet

1.5MM (1/16") 20LBS

 T1F2-15

T1F2-15

The T1F2 cable fittings must slide in from the end of the track and is a simple way to add some additional security to the system by preventing the cable from detaching at a midpoint on the track. The corner cap and end cap both have an access hole to allow the T1F2-15 to be inserted and removed. Maximum weight per cable is 20LBS.


Cable Grippers for Hanging Art

 Cable Grippers for Hanging Art

Cable Grippers for Hanging Art

Halsey Display cable grippers allow for easy height adjustments on the suspension cable. The grippers slide up and down the cable and self lock onto the cable where they are left. Push the release pin at the top of the gripper to re-adjust. See the most common grippers for hanging art here.

Take me to Cable Grippers for Art
